A572 GR50 Carbon Steel Checkered Plate is a remarkable material. The A572 GR50 Carbon Steel Checkered Plate has outstanding strength properties. It is widely used in various industrial and construction fields. The checkered pattern on the A572 GR50 Carbon Steel Checkered Plate provides enhanced grip and slip resistance. This makes it ideal for flooring in industrial areas or on walkways. The A572 GR50 Carbon Steel Checkered Plate is also highly durable. It can endure heavy loads and harsh conditions. Fabrication of the A572 GR50 Carbon Steel Checkered Plate is relatively easy, allowing for customization.
A572 GR50 Carbon Steel Checkered Plate made in China has ridges on the surface, which is non-slip and can be used as flooring, factory escalators, work platform pedals, ship decks, car bottom plates, etc.A572 GR50 Carbon Steel Checkered Plate is used for workshops, large equipment or ship walkways and stairs pedals. It is a diamond or lentil-shaped pattern pressed on the surface of the steel plate.
ASTM A572 High Strength Low Alloy Niobium Vanadium Structural Steel Specification covers five grades: A572 Grade 42 [290], A572 Grade 50 [345], A572 Grade 55 [380], A572 Grade 60 [415], A572 Grade 65 [450].
High Strength Low Alloy Structural Steel Plates A572 Grade 42, A572 Grade 50, A572 Grade 55 are used for riveted, bolted or welded structures. A572 Grade 60 and A572 Grade 65 are used for riveted or bolted structures of bridges, or for riveted, bolted or welded structures in other applications.ASTM A572 Gr 50 steel equivalent grades: GB Q355B (Q345B), ASME SA572 Grade 50, DIN ST52-3, JIS SM490A, EN S355JR, FE510B, E36-2, etc.China A572 GR50 steel plate is produced with ordinary carbon steel No. 1-3 B grade steel, with a thickness of 2.5-8mm, a width of 600-1800mm, and a length of 2000-12000mm.
The specifications of A572 GR50 Carbon Steel Checkered Plate are expressed in basic thickness (excluding ridge thickness), with a total of 10 specifications from 2.5 to 8mm. Patterned steel plates are No. 1-3.
A572 GR50 Carbon Steel Checkered Plate, also known as mesh steel plate, is a steel plate with diamonds or ridges on the surface.

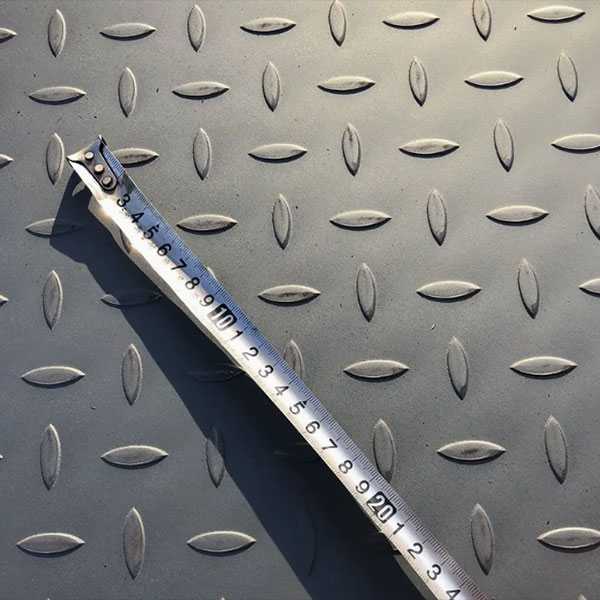

The pattern can be a single diamond, lentil or round bean, or it can be appropriately combined into a combined patterned plate by two or more patterns.
The pattern mainly plays an anti-slip and decorative role. The combined patterned plate is significantly better than the single patterned plate in terms of anti-slip ability, bending resistance, metal saving, and beauty.
Patterned steel plates are widely used in shipbuilding, boilers, automobiles, tractors, train carriages, construction and other industries. Pattern roll is a patterned steel plate, also known as checkered steel plate, which is a steel plate with diamond or ridge edges on the surface. The length of the pattern roll is generally 6m, the width is 800mm~1800mm, 1260mm width is the most common specification, the thickness ranges from 2mm~8mm, and 0.5mm is added in the middle.
|
Product |
Corten Steel(Weathering Steel) Plate/Coil |
|
Width |
200-2000mm |
|
Thickness |
1-50mm |
|
Size Tolerance |
+/- 1% |
|
Grade |
Q195, Q235, Q265, Q295, Q310, Q355, Q415, Q460, Q500, Q550,etc |
|
Standard |
AISI, ASTM, BS, DIN, GB, JIS, EN |
|
Yield Strength |
250~600 MPa |
|
Tensile Strength |
350~800 MPa |
