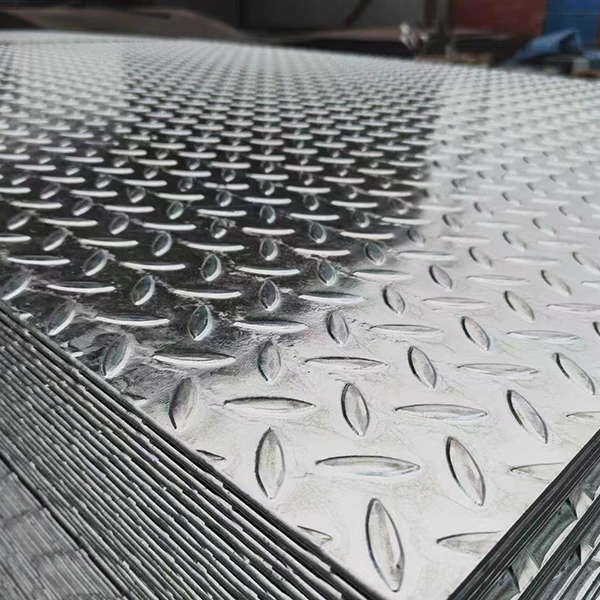

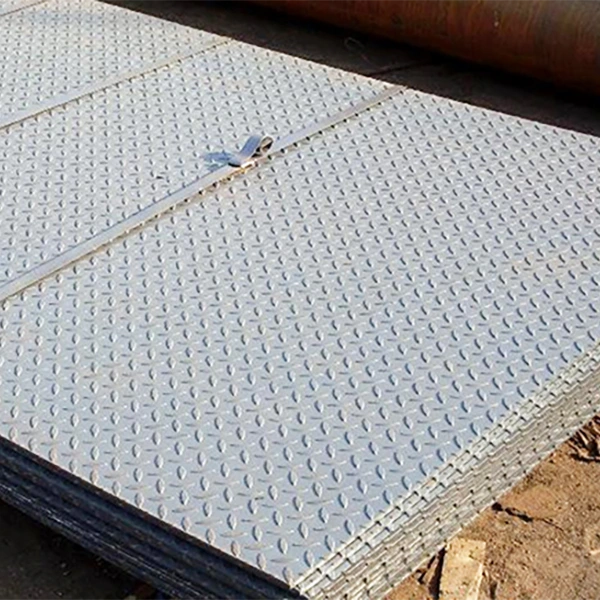

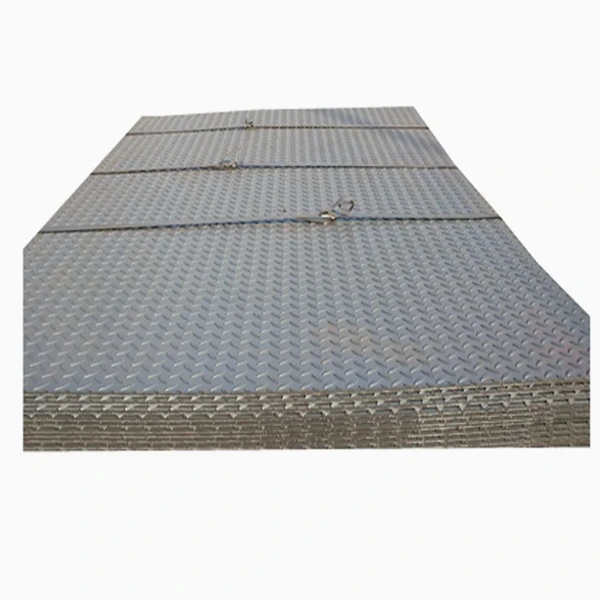

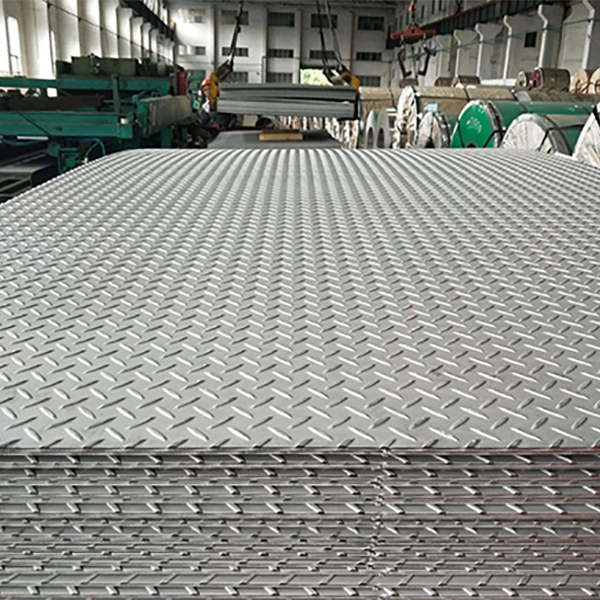

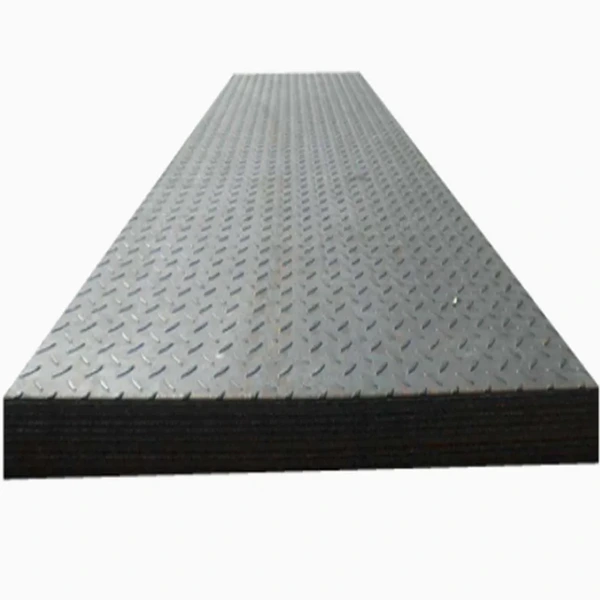

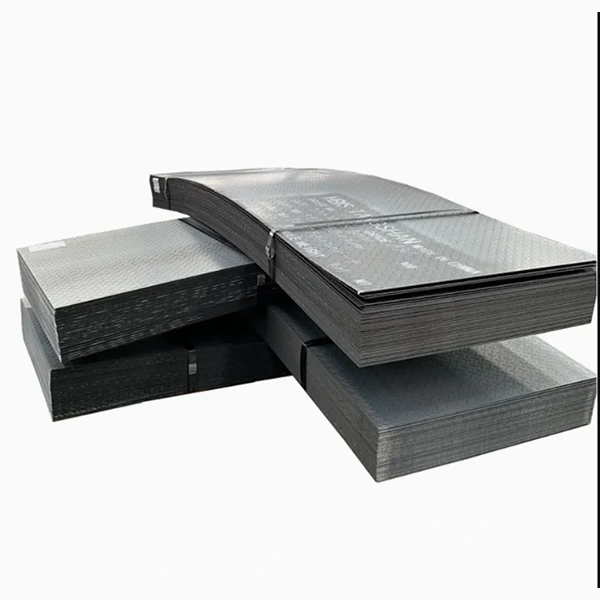

A36 Carbon Steel Checkered Plate: An excellent combination of quality and function. A36 Carbon Steel Checkered Plate is a steel product that has attracted much attention in both the industrial and construction fields. With its unique pattern design, A36 Carbon Steel Checkered Plate not only enhances the friction of the plate surface, but also has a unique aesthetic.
A36 Carbon Steel Checkered Plate has good anti-slip performance.

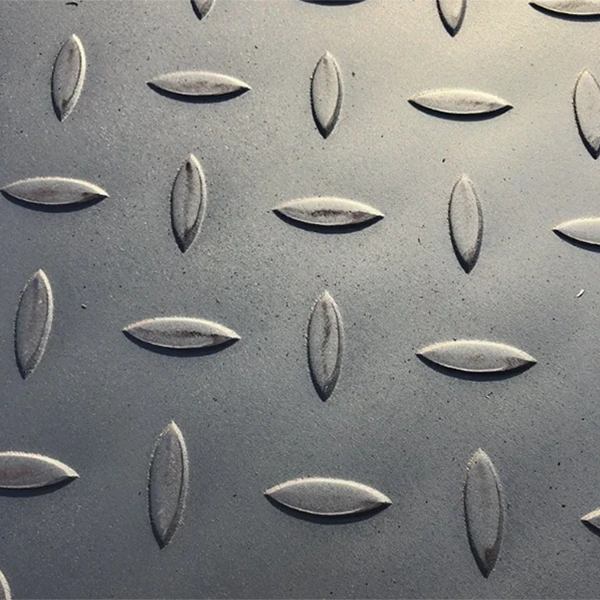

The pattern of A36 Carbon Steel Checkered Plate gives it a certain decorative effect.
A36 Carbon Steel Checkered Plate is made according to ASTM A36. The chemical composition includes carbon (C): the content is generally not more than 0.29%
Manganese (Mn): the content is usually between 0.80% - 1.20%,
Phosphorus (P): the content is not more than 0.04%,
Sulfur (S): the content is not more than 0.05%
Mechanical properties include:
Yield strength: the minimum yield strength is 250MPa
Tensile strength: the tensile strength is between 400 - 550MPa
Elongation: when the gauge length is 50mm, the elongation is not less than 23%.
Specific impact performance requirements may also need to be met.

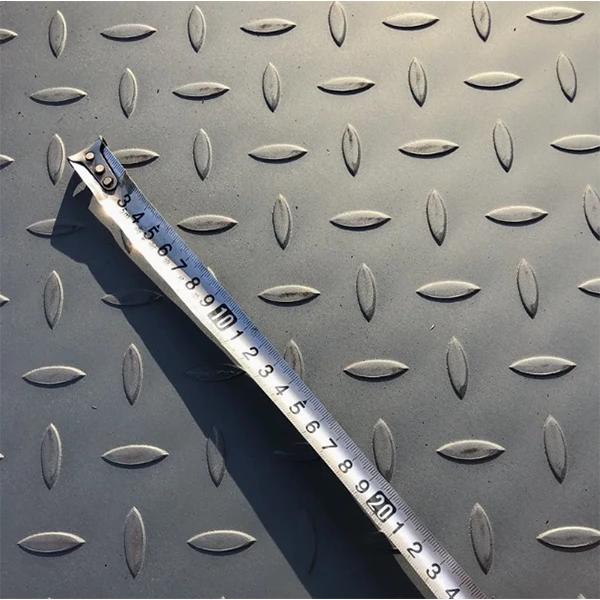

We also have clear regulations on the size and height of the pattern to ensure good anti-slip performance and appearance quality.
Key attributes
Industry-specific attributes
|
Standard |
AiSi |
|
Tolerance |
±1% |
|
Technical Test |
UT Test, Bending Test |
|
Invoicing |
by theoretical weight |
|
Other attributes |
|
|
Place of Origin |
Shandong, China |
|
Grade |
NM400 NM450 NM500 NM550 |
|
Alloy Or Not |
Is Alloy |
|
Delivery Time |
within 7 days |
|
Brand Name |
RENAI |
|
Application |
Ship Plate, Boiler Plate, Container Plate, High-strength Steel Plate, Abrasion-Resistant Steel |
|
Thickness |
6-20mm |
|
Width |
1500-2500mm |
|
Length |
3000-12000mm |
|
Certificate |
BIS, SABS, JIS, GS, ISO9001, ABS, BV |
|
Processing Service |
Welding, Punching, Cutting, Bending, Decoiling |
|
Product Name |
wear resistant Steel Plate |
|
Material |
wear steel |
|
Technique |
Hot Rolled |
|
Special Use |
construction machinery |
|
Thickness |
6-20mm |
|
Usage |
Building Construction Material |
|
Advantage |
in stock delivery fast |
|
NM400 hardness |
370-420HRB |
|
NM450 Hardness |
420-470HRB |
|
NM500 Hardness |
470-520HRB |
|
Packaging and delivery |
|
|
Selling Units |
Single item |
|
Single package size |
10X10X10 cm |
|
Single gross weight |
1.000 kg |
