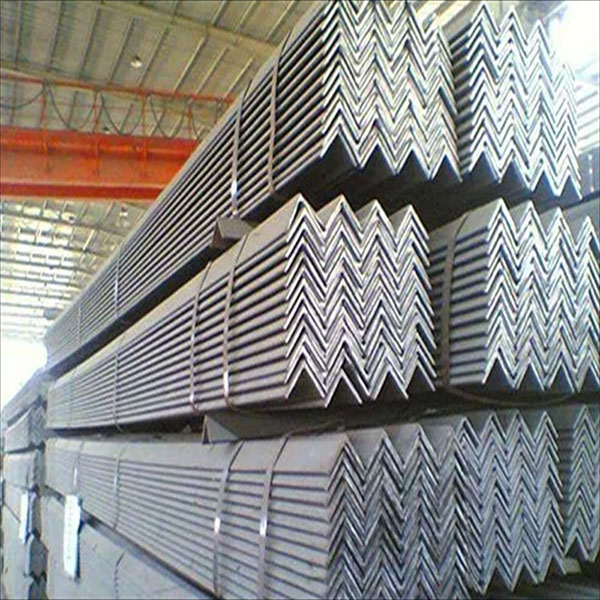

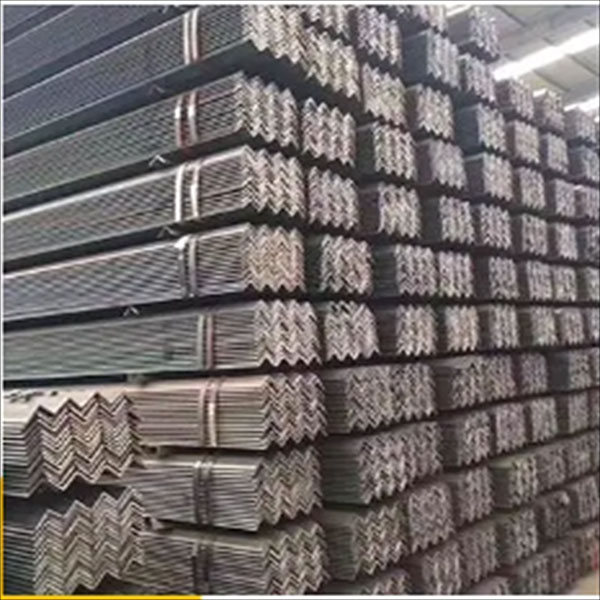

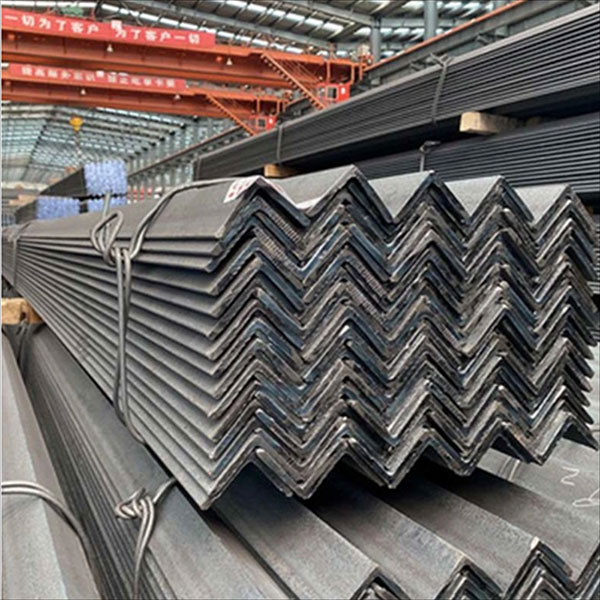

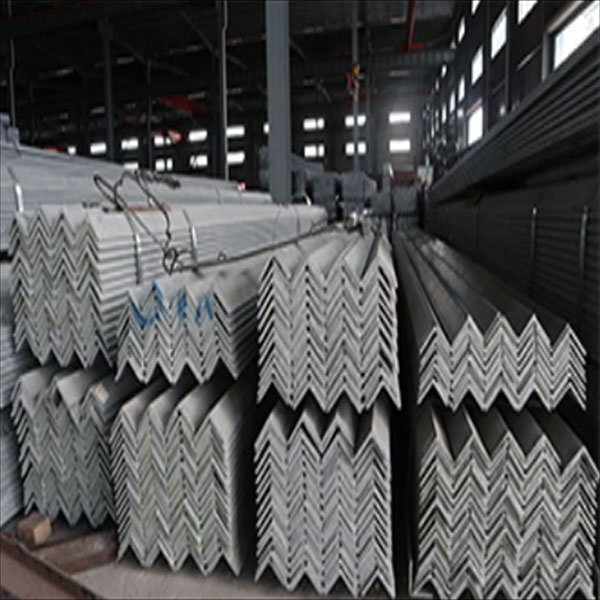

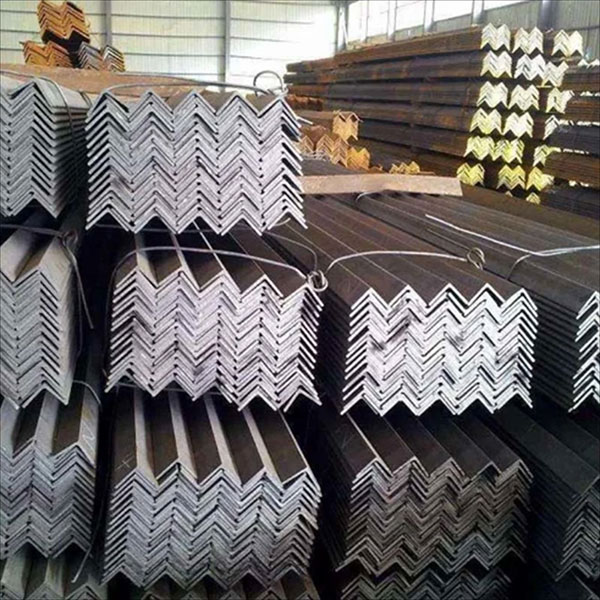

S355JR Angle Steel is a popular choice in various construction and industrial applications. The S355JR Angle Steel has excellent mechanical properties, providing high strength and good toughness. It is widely used for structural frameworks where stability and durability are crucial. The S355JR Angle Steel can be easily fabricated and welded, allowing for flexible design and installation. Its shape, the characteristic angle of the S355JR Angle Steel, makes it suitable for corner supports and bracing systems.
S355JR Angle steel is a carbon structural steel used in construction. It is a simple cross-section steel material. It is mainly used for metal components and factory building frames. It requires good weldability, plastic deformation performance and certain mechanical strength during use. The raw material billet for the production of angle steel is low carbon square steel billet, and the finished angle steel is delivered in a hot-rolled, normalized or hot-rolled state.
S355JR angle steel has excellent heat resistance and high strength, and is suitable for structures bearing large loads and high stresses, such as tower cranes, airport runways, etc.
|
Products |
Angle Steel |
|
Grade |
Q235,Q355,SS400/SS540,S235JR/S235J0/S235J2, |
|
Specification |
20*20--200*200mm |
|
Length |
6m, 12m,Large quantity can be customized |
|
Technique |
Hot rolled |
|
Application |
Widely used in various building
structure and engineering structure, such as the beam, bridges, transmission
tower, lifting |
|
Payment Terms |
L/C , T/T or Western Union |
| Equal Angle bar | ||
| Width | Thickness |
Theoretical weight(kg/m) |
| 20 | 3 | 0.877 |
| 4 | 1.145 | |
| 25 | 3 | 1.121 |
| 4 | 1.459 | |
| 30 | 3 | 1.373 |
| 4 | 1.786 | |
| 40 | 3 | 1.852 |
| 4 | 2.422 | |
| 5 | 2.976 | |
| 50 | 3 | 2.332 |
| 4 | 3.059 | |
| 5 | 3.77 | |
| 6 | 4.465 | |
| 63 | 4 | 3.097 |
| 5 | 4.822 | |
| 6 | 5.721 | |
| 8 | 7.469 | |
| 10 | 9.151 | |
| 70 | 4 | 4.372 |
| 5 | 5.397 | |
| 6 | 6.406 | |
| 7 | 7.398 | |
| 8 | 8.373 | |
| Equal Angle bar | ||
| Width | Thickness |
Theoretical weight(kg/m) |
| 75 | 5 | 5.818 |
| 6 | 6.905 | |
| 7 | 7.976 | |
| 8 | 9.03 | |
| 10 | 11.089 | |
| 80 | 5 | 6.221 |
| 6 | 7.376 | |
| 7 | 8.525 | |
| 8 | 9.658 | |
| 10 | 11.874 | |
| 90 | 6 | 8.35 |
| 7 | 9.656 | |
| 10 | 13.476 | |
| 12 | 15.94 | |
| 100 | 6 | 9.366 |
| 7 | 10.83 | |
| 8 | 12.276 | |
| 10 | 15.12 | |
| 12 | 17.898 | |
| 14 | 20.611 | |
| 16 | 23.257 | |
| 110 | 7 | 11.928 |
| 8 | 13.532 | |
| Equal Angle bar | ||
| Width | Thickness |
Theoretical weight(kg/m) |
| 110 | 10 | 16.69 |
| 12 | 19.782 | |
| 14 | 22.809 | |
| 125 | 8 | 15.504 |
| 10 | 19.133 | |
| 12 | 22.696 | |
| 14 | 26.193 | |
| 140 | 10 | 21.488 |
| 12 | 25.522 | |
| 14 | 29.49 | |
| 16 | 33.393 | |
| 160 | 10 | 24.729 |
| 12 | 29.391 | |
| 14 | 33.987 | |
| 16 | 38.518 | |
| 180 | 12 | 33.159 |
| 14 | 38.383 | |
| 16 | 43.542 | |
| 18 | 48.634 | |
| 200 | 14 | 42.894 |
| 16 | 48.68 | |
| 18 | 54.401 | |
| 20 | 60.056 | |
